Recommended Products to Complete Your SunPower® E-Flex Solar System

SunPower E-Flex Panel ONLY.jpg
MVG 12_200 Battery Image.jpg

SunPower panels

MPPT charge

controller

Circuit breaker

Battery bank

SunPower® E-Flex panels are the first step in going solar on your yacht.  Some of the items listed below will be required for installation and to complete your solar system, especially if you are using more than one panel.  Whether you are new to solar, or upgrading your current system aboard, we recommend the following products that are available on Amazon to complete your install.  We did all the research and made it easy for you to just click on the product and add it to your cart to build your new SunPower® E-Flex system aboard.



Disclaimer: Sun Powered Yachts, as an Amazon Associate, will earn from qualifying purchases.

LOXX fastener on 50W.jpg

Recommended Add-Ons for your System Installation

Y-Branch MC4 Connectors

For parallel wiring - we highly recommend a variation of these Y-branch connectors.  When connecting your panels in parallel they serve to simplify your wire runs, ease installation and provide a good connection and have a weatherproof seal (IP67) to withstand the outside elements.  They are each sold in pairs and are very easy to connect together (plug and play) and depending on your preferred wiring run the first three options give you more flexibility for connections.  eg. If bringing 4 panels together will the wires on your panel each reach the Y branch connector?  Maybe you will need an extension cable?

2-1 flex MC4 connector.jpg

For 2 panels

2x12AWG to 1x12AWG

2-1 fixed.jpg

For 2 panels

3-1 MC4 connector flex.jpg

For 3 panels

3x12AWG to 1x12AWG

3-1 fixed.jpg

For 3 panels

4-1 flex MC4 connector.jpg

For 4 panels

4x12AWG to 1x10AWG

4-1 fixed.jpg

For 4 panels

The design of the MC4 connectors is that they cannot be accidentally disconnected.  To disconnect and stow your SunPower® E-Flex panels, you will need one of these tools.  Note: do not connect or disconnect panels when exposed to light (under load).  Only connect or disconnect when the panel is completely covered by a dark material.  This tool can also be used when attaching your own MC4 connectors to PV wire.

Note: not all MC4 disconnect tools you see online are the same size!  The 'prongs' may be too large to fit but this tool from TE Connectivity will fit all SunPower® E-Flex panels.

MC4 key 1.png

sold as a pair

PV Extension Cable

Each install will be different from the next but you will likely need an extension cable to go from your solar panels/Y branch connectors to the MPPT charge controller (which should be as close to your house battery bank as possible).

Each wire run will be different and if you are comfortable cutting wire, crimping and adding your own MC4 connectors then one option is buy a roll of PV wire, (12AWG or 10AWG) some MC4 connectors and a crimping tool.  To make it more convenient there are PV extension cables with MC4 connectors already attached (male on one end & female on the other)  When choosing the right size of wire, make sure to consider both voltage drop and amps.  Most installs will use either 12AWG or 10AWG wiring to ensure that you harness  all of the solar output.  It is important that the maximum number of amps from your panels does not exceed that of the wiring.



As a general rule 12AWG is for up to 25 amps and 10AWG is for up to 35 amps BUT it is very important to look at the distance of your wire run.

For example: I have a 20ft wire run from my Y branch connectors to my MPPT charge controller.  Take the 40ft extension cable and cut the cable halfway. I now have 2x20ft extension cables with a male and female MC4 connector at one end and bare wire at the other.   The MC4 connectors will connect to your Y-branch connector (for parallel wiring) or to your panels (for series wiring) and the bare wire ends will connect to your MPPT charge controller input.



Note: measure your wire run accurately as you will be surprised it is likely further than you first thought.  When we installed a panel on a Dufour 382 the wire run was right on 30ft, a 60ft extension cable was just enough.

pv extension wire.jpg

10AWG PV extension wire

20ft - 100ft

pv extension wire.jpg

12AWG PV extension wire

20ft - 100ft

Extension cable from my panel to my Y branch connector - Another thing to consider is that maybe your panels will not all reach your Y-branch connectors (for parallel) or might not reach your other panels (for series) In which case you will need an extension cable but it will likely need to be a shorter length and you won't need to cut it in half (as you will need an MC4 connector on each end).

pv extension wire.jpg
pv extension wire.jpg
pv extension wire.jpg

10AWG PV extension wire

6ft

12AWG PV extension wire

6ft

MPPT Charge Controllers

MPPT Charge controllers are an integral part of your solar system aboard your yacht and serve to control the flow of power from the solar panels to the battery bank.  SunPower® E-Flex panels work best with MPPT (Maximum Power Point Tracking) charge controllers as opposed to PWM (Pulse Width Modulation) charge controllers.



See our blog and FAQ for more info on MPPT but in short the innovative technology in the MPPT controller serves to maximize your power production and battery charging.  MPPT charges your batteries up to 30% faster than PWM regulators – with the same number of panels and as such are highly recommended for your solar system.

There are a number of brands available to choose from including: Victron, Genasun, Enervolt, Mastervolt, Blue Star

'Buck' or 'Boost'

It's first important to decide if you need a 'buck' or 'boost' MPPT charge controller which depends on the voltage of your solar panel(s) and the voltage of the battery bank.



A buck MPPT charge controller will take a higher voltage from the solar panel(s) and reduce (buck) the voltage to charge your battery bank eg. 1x170W panel is rated at 29.4V and you are charging a nominal 12V battery bank so you need to buck the voltage.















Web Version-SunPower_flex_170W_flat.jpg

29.4V panel




'Buck' MPPT

higher voltage panel to lower voltage battery



12V nominal

battery bank



MVG 12_200 Battery Image.jpg
Web Version-SunPower_flex_170W_flat.jpg

29.4V panel



'Boost' MPPT

lower voltage panel to higher voltage battery



48V nominal

battery bank



toro-outdoor-power-batteries-chargers-88

A boost MPPT charge controller will take a lower voltage from the solar panel(s) and increase (boost) the voltage to charge your battery bank eg. 1x170W panel is rated at 29.4V and you are charging a nominal 48V battery bank so you need to boost the voltage.

Victron Energy

'Buck'

All of the Victron Energy MPPT Charge controllers in our store are buck controllers, taking your higher voltage panel(s) and reducing (buck) the voltage down to charge your battery bank.



We have had a lot of positive feedback on the line of SmartSolar charge controllers by Victron Energy.  They have Bluetooth built-in which enables set-up and monitoring with a smartphone or tablet.  They also feature, advanced MPPT detection to mitigate shading losses.  Check the voltage of your battery bank and the PV input accepted, these come in 10, 15, 20, 30, 35, 45 & 50Amp output. Victron also offers a wide range of other products like inverters to further complete your SunPower® flexible solar system on your yacht.

When looking at their products (eg. 75|15) the first number is the maximum solar open circuit voltage (75V) and the second is the max charge current in Amps (15A) - BUT it's very important to check the spec sheet to ensure that your solar panel(s) do not exceed the maximum input parameters of the charge controller.  At best you would be limiting the output potential of the panels, at worst you could damage the controller.

As of January 2015 all Victron Energy products come with a 5 year limited warranty (with the exception of their batteries which have a 2 year limited warranty)  We heard great feedback about their technical support from a number of people who stopped by our booth in Annapolis.  For their full product line you can visit  www.victronenergy.com



Notes: There is also a Victron Energy BlueSolar range of charge controllers

without bluetooth built in that is slightly less expensive.  Email us for pricing.



If you want to back up your bluetooth and have the redundancy of a remote

monitor or just like the convenience of a display at the nav station then both

the BlueSolar & SmartSolar MPPT charge controllers have the option to add

a separate remote monitor with display (requires VE.Direct cable)

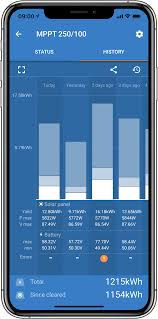

VictronConnect app

Download the 'VictronConnect' app for free.  When first powering up your charge controller and pairing it with Bluetooth you will likely need a password which is set to six zeros (000000) You can then change this password to one you prefer.  You will also likely have to carry out a few firmware updates, which is pretty straightforward and in no time you will be paired and able to see your solar system performance in great detail.  Historical data is also stored for up to 30 days.







SmartSolar range
bluetooth connectivity built in

75|10 - $109.80

PV Input:

12V - Up to 145W

24V - Up to 290W

36V/48V - N/A


75|15 - $119.15

PV Input:

12V - Up to 220W

24V - Up to 440W

36V/48V - N/A


100|30 - $138.70

PV Input:

12V - Up to 220W

24V - Up to 440W

3648V - N/A

The full range of Victron SmartSolar MPPT controllers is available in our store with free shipping in the USA.  Just click on a controller for more product details or see the links below for product spec sheets.



We're happy to help you size the correct controller(s) for the number & size of SunPower E-Flex panels you install.  Just email or call us and we'll check the parameters of the panel(s) and controller(s).


100|20 - $158.25

PV Input:

12V - Up to 290W

24V - Up to 580W

36V/48V - N/A


100|50 - $324.85

PV Input:

12V - Up to 700W

24V - Up to 1400W

36V/48V - N/A


100|20-48V - $167.60

PV Input:

12V/24V/36V - N/A

48V - Up to 1160W


150|35 - $324.85

PV Input:

12V - Up to 500W

24V - Up to 1000W

36V - Up to 1500W

48V - Up to 2000W


100|30 - $227.10

PV Input:

12V - Up to 440W

24V - Up to 880W

36V/48V - N/A

smartsolar-charge-controller-mppt-150-45

150|45 - $492.30

PV Input:

12V - Up to 650W

24V - Up to 1300W

36V - Up to 1950W

48V - Up to 2600W

Genasun

'boost'

Do you have a 48V battery bank aboard and wondering how you can charge your batteries with just one solar panel?

Genasun has the answer.  Their charge controllers are made in the USA and have a 5 year limited warranty.



Most solar MPPT charge controllers move power from a higher voltage panel to a lower voltage battery bank. The Genasun GVB-series controllers, in contrast, pump electricity uphill. These controllers will take a lower voltage panel and increase (boost) the voltage to charge a 24V, 36V or 48V battery pack.

Check out www.genasun.com for the full range of Genasun controllers.  If charging a 24V-48V nominal battery bank, the GVB-8 (Boost) controller is ideal with any SunPower E-Flex panels.

Note: It's important to choose the correct Genasun GVB-8 controller for your battery type - Lead Acid OR Lithium-Ion

Genasun GVB-8  36V

for Lead-Acid batteries

Genasun GVB-8  48V

for Lead-Acid batteries

Waterproof



Genasun Waterproof (WP) boost charge controllers

Most charge controllers are designed to be placed inside the boat

in a dry place and so have a low IP rating (IP22).  Genasun has a solution

for controllers that you might need to install in a place more prone to

the elements & likely to get wet or damp.

Their waterproof boost controllers are rated IP68 and the advanced

electronics inside the controller are encased in a proprietary potting

compound making them ideal for marine applications.



Circuit Breaker

Bussman 187 Series Marine Circuit Breaker

We recommend installing a circuit breaker after the MPPT charge

controller and before the battery bank (on the positive wire).  This will

allow you to isolate the solar from the battery bank should you need to

work on the batteries.  Match the circuit breaker to the output of the

MPPT charge controller eg. 100|50 pair with a 50A circuit breaker.


LOXX Fasteners

LOXX Fasteners - An alternative to installing using velcro on a bimini top are the LOXX fasteners.  These high quality, stainless steel fasteners made in Germany allow for quicker removal of the panels.  The variety of upper parts and lower parts even gives options for installing onto hardtops/coachroof.

Check out their website www.loxxfastenersusa.com for the full range of LOXX fasteners and they are also available at www.sailrite.com

Don't forget you will need a

LOXX fastener install key to

tighten up the fasteners

LOXX fastener on 50W.jpg

LOXX XL upper part with long washer

can attach to the panel


Deck fittings



Depending on your installation you will likely need a watertight cable gland for your marine electronic cables to enter through the boat.  This will be the PV extension wires (positive and negative) running from your solar panels down into the boat to the MPPT charge controller.  There are multiple options and sizes of deck fitting available and these are just a few suggestions, click on an image for more product details.



Have an alternative solution that works?  Email us and we'll add it to the list.

MC4 dust covers

Are you taking your solar panels down & stowing them for any period of time?  Use these dust covers made by TE Connectivity to protect the MC4 connectors from any dust/dirt ingress on the panel and also any PV extension wire you have still running that would be exposed to the elements.  Available in our store and sold as a pair one of these covers will protect the pin (negative connector) and the other will protect the socket (positive connector)

Dust cover 1.png
Dust cover 2.png
